Ultralydsundertøjsfremstillingsmaskine

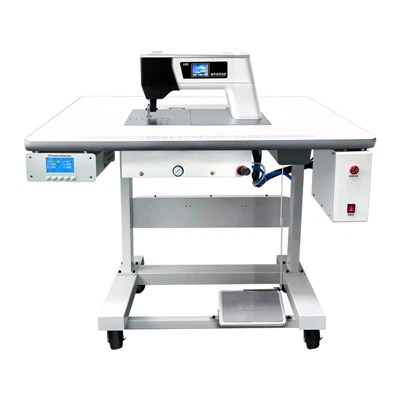

X30S is an automatic high-power ultrasonic lace machine. The ultrasonic core components composed of intelligent frequency tracking ultrasonic generator, high-Q ultrasonic transducer, and wear-resistant tool head have good performance in cutting, welding, and stitching. The whole machine is digitally controlled, driven by dual motors, adjustable Hastighed, pneumatisk trykstyring, blomsterhjulsdiversitet og unormale beskyttelsesfunktioner ...
Ultrasonic underwear making machine is based on the process of using ultrasonic welding technology to composite embossing and edge welding of nonwoven fabrics for underwear, and has developed a nonwoven ultrasonic composite machine that integrates composite, embossing and edge welding functions. The ultrasonic lace compensates the composite embossing defects of non-woven Stoffer under den sammensatte prægningsproces . ultralydsvejseteknologi kan bruges til at udføre sammensat svejsning på undertøjsstof
Parametre for ultralydsundertøjsfremstillingsmaskine
| Model | X30S-D54 | X30S-D77 |
| Ultralydsfrekvens | 20 kHz | 20 kHz |
| Ultralydskraft | Mindre end eller lig med 2600W | Mindre end eller lig med 2600W |
| Ultralydsgenerator | Jyd -2900 sp | Jyd -2900 sp |
| Ultralyds transducer | Jyd -5020-6 p 8- au | Jyd -5020-6 p 8- au |
| Ultralyds booster | S20-D54D38H129-H | S20-D54D38H129-H |
| Motor | Enkelt/asynkron motor 60W 0,8A 110V 60Hz | Enkelt/asynkron motor 60W 0,8A 110V 60Hz |
| Reducer | / | / |
| Arbejdsmetoder | Indbygget | Indbygget |
| Bodende bredde | Mindre end eller lig med 25 mm | Mindre end eller lig med 50 mm |
| Blomsterhjulsdiameter | 50 mm | 50 mm |
| Maksimal hastighed | 20m/min | 20m/min |
| Arbejdsrum | 370mm*155mm | 370mm*155mm |
| Maskinens kropsstørrelse | 500mm*125mm*265mm | 500mm*125mm*265mm |
| Hele maskinstørrelse | 1210*600mm*1100mm | 1210*600mm*1100mm |
| Strømforsyning | 220V ± 10% 50-60 Hz | 220V ± 10% 50-60 Hz |
| Pakningsmetoder | Eksport træ | Eksport træ |
| Pakningstørrelse | 1250mm*600mm*1160mm | 1250mm*600mm*1160mm |
| Vægt | 88,5 kg | 88,5 kg |
Funktioner:
{{0.
{{0.
{{0 eder Stofprodukter af høj kvalitet .
Anvendelse:
Chemical synthetic fiber fabrics, or containing chemical fiber blends, chemical films (containing more than 30% chemical fibers), can be processed into the required products, such as Nylon cloth, needle and thread cloth, non-woven fabric, T/R cloth, Tedlon cloth (Polyester cloth), multi-layer cloth, and all kinds of laminated film paper can be applied.
For flere detaljer om ultralydsundertøjsfremstillingsmaskine, er du velkommen til at kontakte os!
